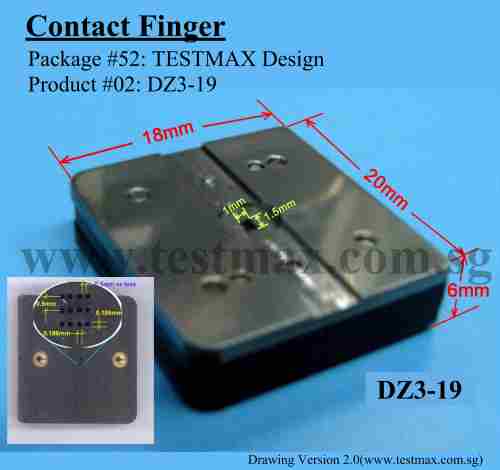

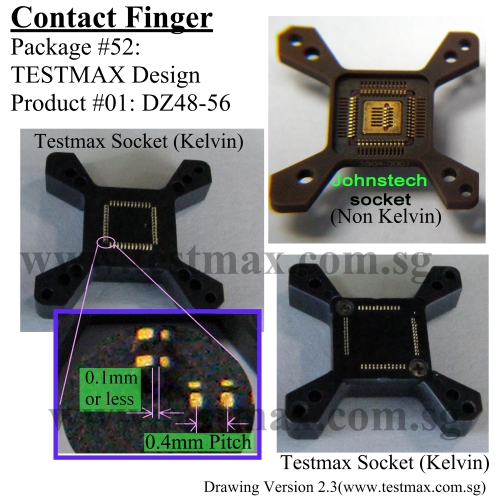

Test Max is please to launch its new Contact Fingers and Test Sockets specially designed with the following features:
1) Small and Compact
2) Fine Pitch of 0.3mm with True kelvin included . High Current (17 Ampere @ 3mSec. >High, 200mSec >LOW)
3) Test Contact Resistance of 30mill Ohm.
4) Spacing of kelvin contact gap with min of 0.03mm.
5) Compression of contact pin can travel to 0.5mm.
(Click on the image for detail)
Note: Johnstech and Johnstech logos are trademarks of Johnstech International (http://www.johnstech.com/). All rights reserved.
To request for more specification, please contact us here.
.
Sockets/Connectors

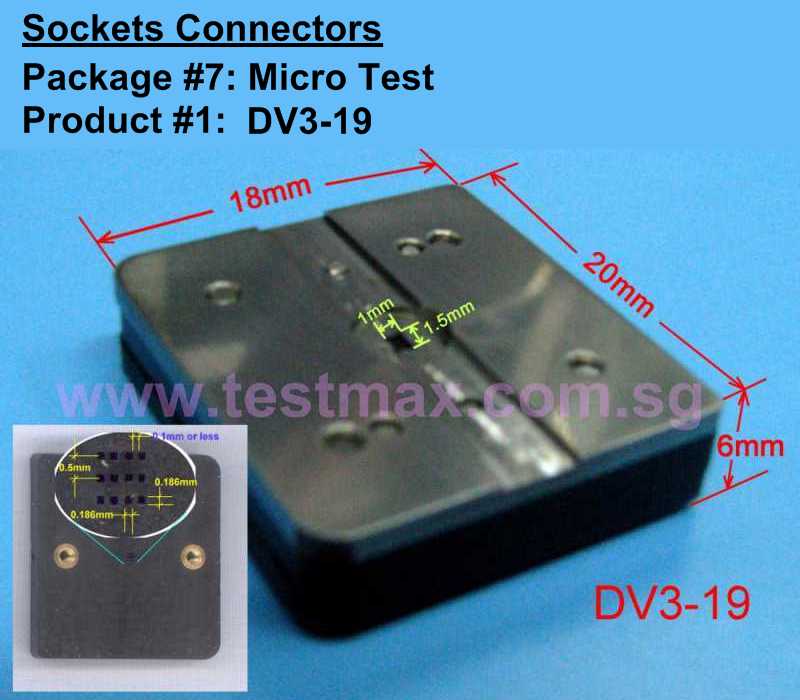

Package #07: Micro Test socket with kelvin contact (QFN, DFN)
.
Product Pictures
.
Note: Johnstech and Johnstech logos are trademarks of Johnstech International (http://www.johnstech.com/). All rights reserved.
Features
1) Small and Compact
2) Fine Pitch of 0.35mm with kelvin included .
3) Test Contact Resistance of 30mill Ohm.
4) Spacing of kelvin contact gap with min of 0.05mm.
5) Compression of contact pin can travel to 0.5mm.
.
.
To request for more specification, please contact us here.
. Product Slide Show
.
